ImmuneAir Hospital-Grade Plasma Air Sterilizers
Our Hospital Grade Plasma and UV-C air sterilization systems are used in many hospitals in the Operating Rooms, ICU units, Delivery Rooms, Emergency Rooms, and other high risk areas where the air MUST be the most pathogen free as possible. Our Plasma units use a unique combination of technologies which include:
PATENTED ULTRA HIGH VOLTAGE PLASMA GENERATOR
NEGATIVE ION GENERATION 2.62 x 10^18/m3 (add 18 zeros to 2.62 ! )
POSITIVE ION GENERATION 5.34 x 10^17/m3 (add 17 zeros to 5.34 ! )
(most plasma systems create ions in the range of 6-10 x 10^6)
​
​
Our Plasma systems come in a variety of configurations to meet any hospital, school, medical or dental office, or industrial application. Please contact us for prices and to discuss your particular needs and for contact information of our representative in your area, who would be happy to visit your site to perform a site analysis to determine the best application for your needs.
Plasma systems hold some significant advantages over other technologies such as:
2,000-time faster sterilizing power than ozone
180-time faster sterilizing power than UV-C
Exceptionally Powerful sterilization of viruses
Powerful deodorizing effect
No secondary pollutants made
Dynamic and Harmless to the human body
Long life span and no need to replace parts such as UV-C bulbs
Plasma generators last many years with the only maintenance being dusting off the element
Plasma units consume around 25% of the electricity than a comparable UV-C unit
Excellent in an environment where the unit might be banged, which could cause failure of a UV-C bulb
​
ImmuneAir QA-1000D Ceiling Mounted Plasma Unit $3595
High output plasma bipolar ion generation (negative ions 2.62 x 10^18, positive ions 5.34 x 10^17/m3)
Two-stage filter system with HEPA and activated carbon
This unit mounts flush into dropped ceilings and can disinfect a 765 sq. ft. room 5 times / hour in a school, restaurant, or commercial setting. For hospital applications, where air should be recirculated between 8 and 10 times / hour, this unit is rated for between 375 and 485 sq. ft. Multiple units can be installed in a ceiling of a larger room to achieve the highest levels of air sterilization.
The air quality can be improved within 6 minutes.
Bactericidal rate of Staphylococcus 99.97%
Long lasting plasm generator will last for 100,000 hours (11 years running 24x7)
Remote control & Touch screen
Multiple sensors to inspect air quality and temperature
Solid carbon steel construction - 5 inch LCD Big Touch Screen
Low 90W energy consumption
Whisper quiet max <50db noise level on highest setting
23.6*23.6*14.5 inches, 79 lbs.

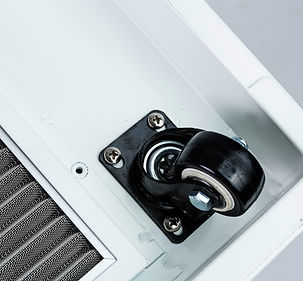

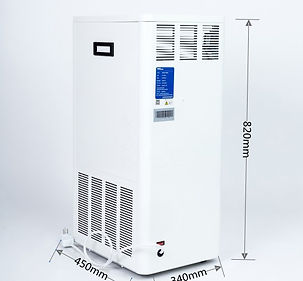

ImmuneAir YA-1000D Movable Plasma Unit $2995
High output plasma bipolar ion generation (negative ions 2.62 x 10^18, positive ions 5.34 x 10^17/m3)
3-stage H13 HEPA and carbon filters
589 CFM can disinfect a 765 - 1290 sq. ft. room 3-5 times / hour in a school, or commercial setting.
In hospital applications, where air should be recirculated between 8 and 10 times / hour rated 375 - 485 sq. ft.
Bactericidal rate of Staphylococcus albus 99.94%
Long lasting plasm generator will last for 100,000 hours (11 years running 24x7)
Solid carbon steel construction - 5 inch LCD Big Touch Screen
Low 150W energy consumption
Whisper quiet max <50db noise level on highest setting
17.7*13.3*32.2 inches, 69 lbs.
​
​
ImmuneAir BA-800D Wall Mounted Plasma Unit $2995
High output plasma bipolar ion generation plus 3-stage H13 HEPA and carbon filters
471 CFM can disinfect a 615 - 1020 sq. ft. room 3-5 times / hour in a school, or commercial setting.
In hospital applications, where air should be recirculated 8 - 10 times / hour rated 306 - 375 sq. ft.
Bactericidal rate of Staphylococcus 99.97%
Long lasting plasm generator will last for 100,000 hours (11 years running 24x7)
Solid carbon steel construction - 5 inch LCD Big Touch Screen
Low 90W energy consumption
Whisper quiet max <50db noise level on highest setting
35*14.3*7.5 inches, 46 lbs.

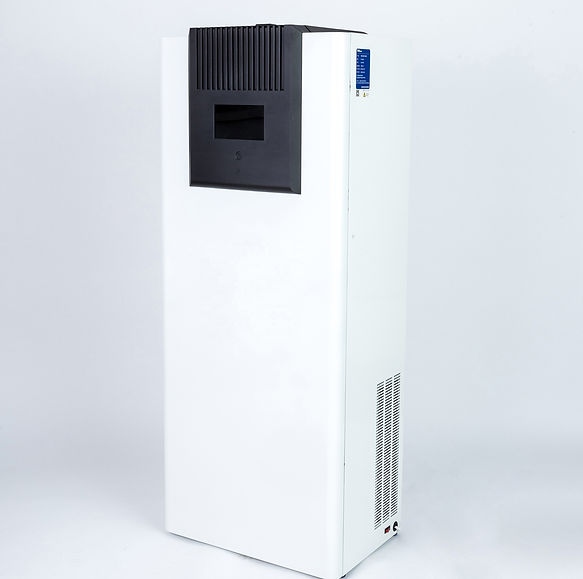

ImmuneAir GA-1600D Cabinet Plasma Unit $4995
High output plasma bipolar ion generation (negative ions 2.62 x 10^18, positive ions 5.34 x 10^17/m3)
4-stage H13 HEPA and carbon filters
942 CFM can disinfect a 1328 - 2045 sq. ft. room 3-5 times / hour in a school, or commercial setting.
In hospital applications, where air should be recirculated 8 - 10 times / hour rated 613 - 764 sq. ft.
Bactericidal rate of Staphylococcus 99.99%
Long lasting plasm generator will last for 100,000 hours (11 years running 24x7)
Solid carbon steel construction - 7 inch LCD Big Touch Screen
Low 90W energy consumption
Whisper quiet max <50db noise level on highest setting
56*23*16 inches, 114 lbs.
ImmuneAir IA-1000D Wall Plasma Unit $1795
High output plasma ion gas generation
No consumable filters to change. Only maintenance is dusting off plasma element every 6 months
589 CFM can disinfect a 765 - 1290 sq. ft. room 3-5 times / hour in a school, or commercial setting.
In hospital applications, where air should be recirculated between 8 and 10 times / hour rated 375 - 485 sq. ft.
Bactericidal rate of Staphylococcus albus 99.9%
Long lasting plasm generator will last for 100,000 hours (11 years running 24x7)
Low 90W energy consumption
Whisper quiet max <50db noise level on highest setting
39*12.6*7.8 inches, 22 lbs.
​
​
ImmuneAir Hospital-Grade UV-C Air Sterilizers
ImmuneAir IA-UV-1000 UV-C Flat Wall Unit $1795
8 High output 254nm U-shaped UV-C lamps
Negative ion generation: 6 x 10^12 (6 trillion) / cm3
No consumable filters to change. Lamps last 2 years of average use (12 hours / day)
589 CFM can disinfect a 765 - 1290 sq. ft. room 3-5 times / hour in a school, or commercial setting.
In hospital applications, where air should be recirculated between 8 and 10 times / hour rated 375 - 485 sq. ft.
Bactericidal rate of Staphylococcus albus 99.9%
Low 220W energy consumption
Whisper quiet max <50db noise level on highest setting
38.5*15.5*6.8 inches, 22 lbs.
​
​
